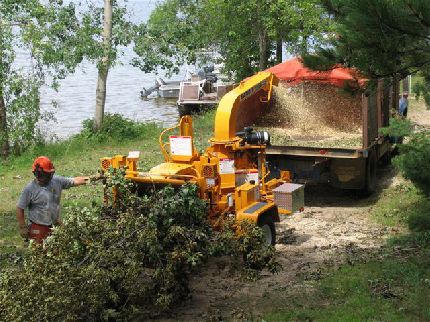

The Model 90XP is a compact, easy-to-tow 9-inch capacity disc-style chipper. A 9" X 17" chipper opening allows the Model 90 to process multiple stems as well as large diameter pieces up to 9 inches. This unit has been very popular among small tree services and municipality's because of its maneuverability and low operating cost. The Model 90 features a wide array of engine options ranging from 46 to 90 horsepower.

The Model 90 is built tough like our popular 12-inch Model 150 and with the same powerful dual feed system found on the Model 150. This feed system has the power to pull whole trees into the chipper. The Model 90 can be ordered with a self-propelled rubber-tracked undercarriage that will eliminate the need to carry material to the chipper. If you are in the market for a compact, dependable brush chipper that is easy to operate and maintain, give our Model 90 a look.

Dimensions

    Width:
    Heigth:
    Length:
    Weight:

Tires and Axels

    Capacity:
    Tires:

Tongue Jack

    Capacity:
    Type:

Steel Fuel Tank Capacity

Steel Hydraulic Tank Capacity

Towing Hitch

Chipper Cutting Wheel

    Disc:
    Knife Pockets:

Infeed Hopper Opening

    Height:
    Width:
    Control Bar:

Discharge System

    Swivel:

Lighting Electrical System

5' 10"
8' 2"
16' 4" with infeed tray closed, (18' 10" with infeed tray open)
4,400 pounds (depending on options)

7,000 pound Torflex axle
(2) 245 / 75R 16" load range E, 10 ply

5000 lbs.
Stationary foot pad

24.5 gallons

7 gallons

2-1/2" pintle ring or 2-5/16" ball adjustable height

30" diameter X 1-1/2" thick
2 pockets (each holds (2) 1/2" X 4" X 5 1/2" double edged knife)

29"
35"
Forward/Neutral/Reverse

360 degree manual rotation, w/ chip deflector

12 volt system w/ rubber mounted LED taillights,
